2000Gx6 common rail pressure sensor - X00E50207452

----------------INSERT-----------------------

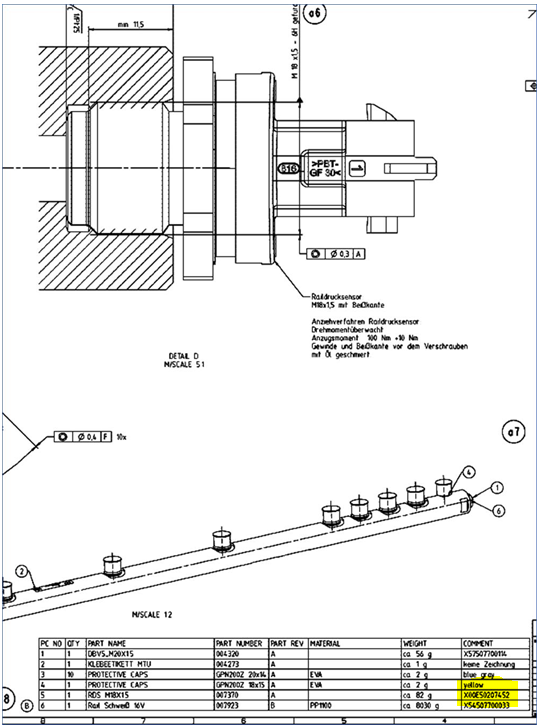

Hi MTU - can you check on this part number if there is a BOM or drawing you maybe able to confirm a sensor is available to purchase separately or do we need to order the complete rail / accumulator to change sensor???



--------------

Hi Tim,

Yes this is available separately, - X00E50207452





--------------------------END INSERT---------------------
