4000 Haul truck alternator shims
Shims are available from MTU for use on our typical 4000 haul truck alternator installations as per below.
Outer flywheel housing to alternator
951674 - 0.005"
951675 - 0.010"

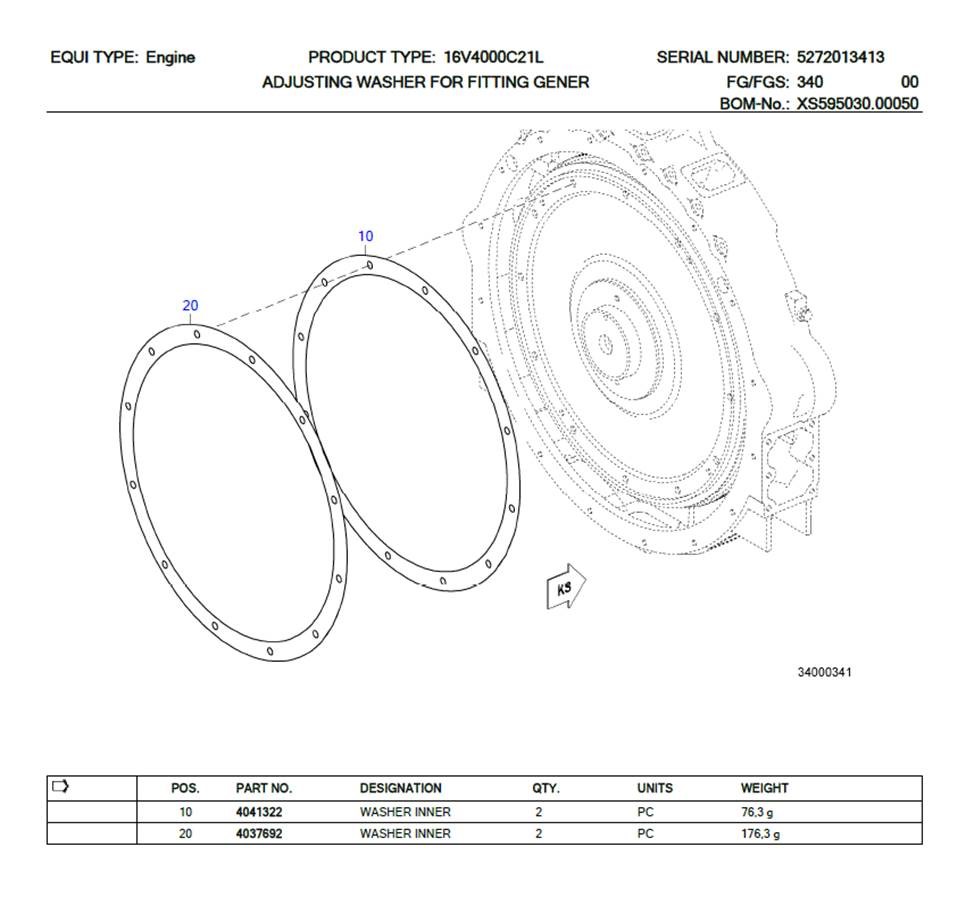

Flywheel to alternator drive
4041322 - 0.005"
4037692 - 0.010"
