12V2000C21 coolant heater inlet and outlet points

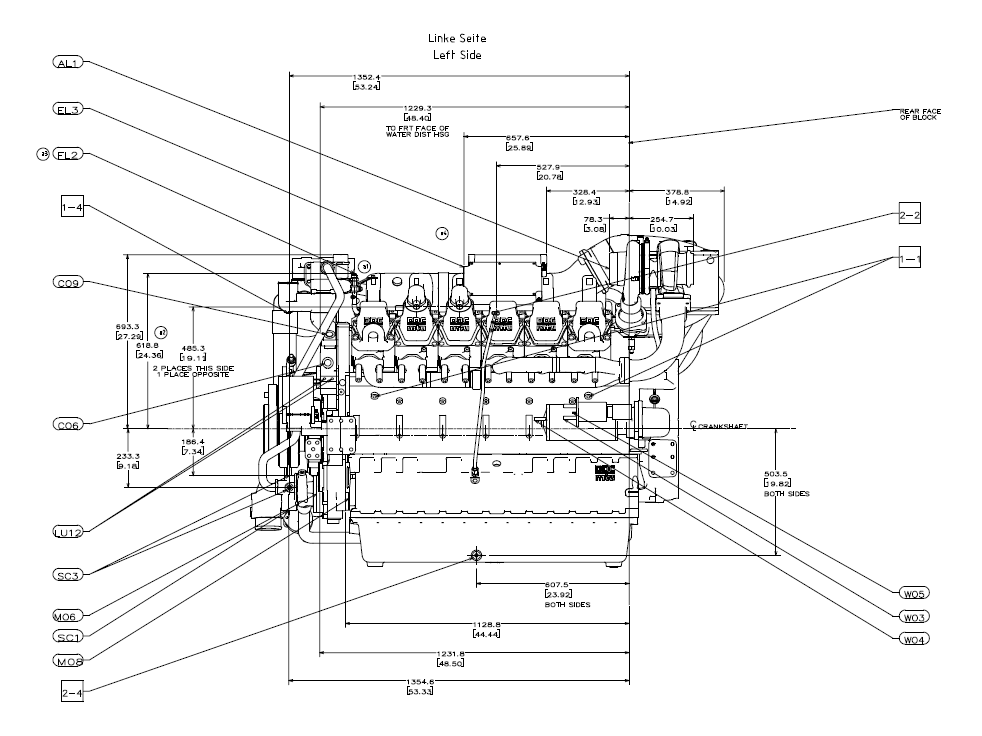

The recomended coolant heater inlet and outlet points for 12V2000C engines as shown in attached photo.

C06 and C09 on the drawing.

​
