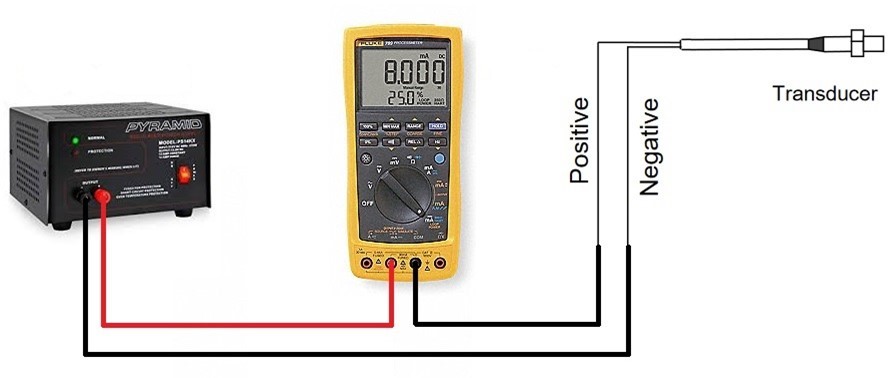

4-20mA Sensor Signal

• The 4-20mA Sensor adjusts the current output signal proportional to the range of the sensor.
• The signal is unaffected by EMI, cable length or corroded pins.
• The 4-20mA signal at the PLC is always the same as that being generated by the sensor, unless the harness is compromised.
