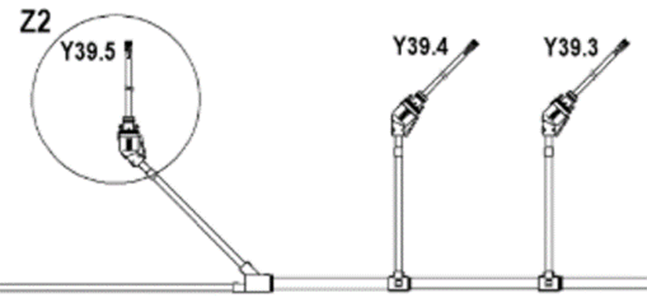

4000-03 injector pass through connector repair

Incase of oil leaks from the injector pass through connector a procedure has been developed to so the removal and replacement of the pass through harness (PN - X00E50209894)

This procedure can be found in TSD 20-10 Issue 2 4000-03 fuel injector harness connections (ADEC codes 341 - 360)

• Related Articles

• 4000-03 injector pass through pigtail connector assembly

  4000-03 injector pass through pigtail connector assembly part number is X00E50209894 - to replace see attached guide details. Also refer to TSD 20-10 for details around these connectors and troublehooting.

• 4000-03/04 injector pigtail pass through connector o'ring

   For 4000-03 engines the injector pass through connector / pigtail O'ring part number is XP526991000687

• 4000-03 Injector troubleshooting

  To prevent misdiagnosis TSD 20-10 Issue 2 has been developed, it contains troubleshooting procedures when dealing with injector open load faults (ADEC code #'s 341 - 360).

• Harness connector, terminals and tooling repair support details for ADEC ECU 7 8 9

  Attached document provides useful part numbers and details for parts and tooling required to repair or maintain ADEC ECU 7, 8 & 9 harnesses.

• ADEC harness to ECU connectors repair or replacement

  If any of the ECU 7 connectors are damaged ie. locking mechanisim / lever  etc. and replacement is necessary please find attached parts details to source replacement parts as needed.
