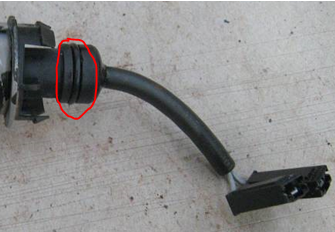

4000-03/04 injector pigtail pass through connector o'ring

 For 4000-03 engines the injector pass through connector / pigtail O'ring part number is XP526991000687
