4000 Accessory drive no load or barring over tool

Enquiries have been received about whether accessory drive version can be modified and left within the gear train to use as a barring over tool - Note MTU do not allow / recommend accessory drives be installed on 4000 series engine if not driving a load - chattering, abnormal wear and failure can occur to the gear train if non loaded accessory drive running for any extended period.

• Related Articles

• 4000 barring over tool

  Hi Scott, If you search the attached Tool Catalogue MTU document M004029 for "barring" you'll find it. Tool Catalogues for MTU engines are all available on the MTU Business Portal, if you don't have access you can request itat theIT department. Best ...

• 12V2000 C & I in feild engine barring over tool

  The correct tool for barring over 12V2000 engines in the feild is F6557971

• Detroit 2 stroke accessory drive details

  2 stroke accessory drive / PTO data

• 4000 Haul truck alternator shims

  Shims are available from MTU for use on our typical 4000 haul truck alternator installations as per below. Outer flywheel housing to alternator 951674 - 0.005" 951675 - 0.010" Flywheel to alternator drive 4041322 - 0.005" 4037692 - 0.010"

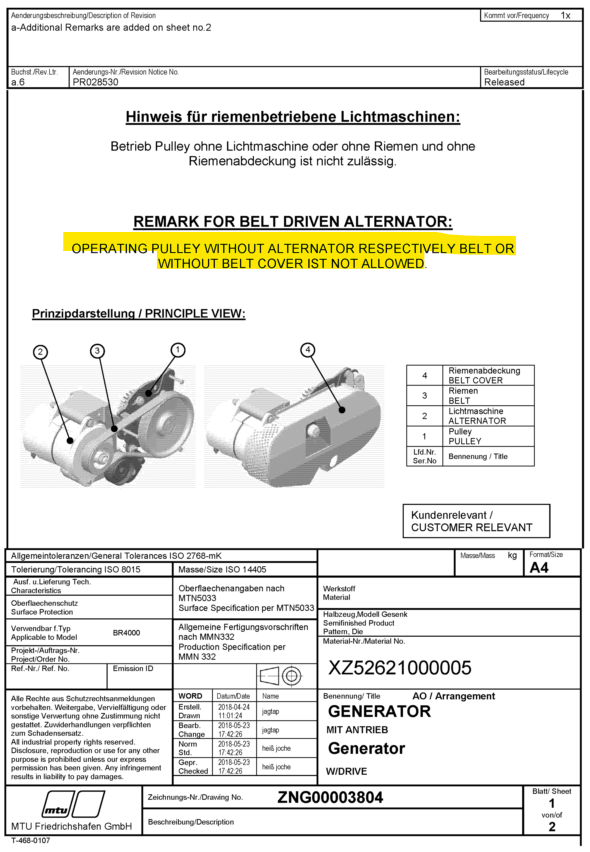

• 4000 battery charging alternator drive belt adjuster improved version

  MTU through their continuous imporement strategy has released a new version alternator belt and tensioner configuration - TSD 20-13 has been published to Onedrive to provide clarity on differences, precautions for consideration with mixed fleet, ...
