Troubleshooting Low Boost and Power Output in 6V53 Engines: A Comprehensive Guide

When a 6V53 engine exhibits low boost pressure and reduced horsepower—particularly when performance drops significantly below historical norms—diagnosing the root cause requires a methodical approach. In this article, we address common symptoms such as sustained low boost (e.g., 17 psi instead of the expected 28–31 psi) and subpar power output (e.g., 223 HP vs. a typical 255 HP at 2600 RPM), drawing from real-world troubleshooting experiences and verified solutions. The insights shared here are designed to help operators, technicians, and service teams resolve similar issues efficiently and effectively.

Fuel System Integrity: Assessing Return Flow and Supply

One of the most overlooked yet critical aspects of engine performance is the integrity of the fuel system, particularly the return flow. In the case under review, initial checks—including replacing fuel filters, inspecting hoses, and verifying injector heights—yielded no improvement. However, the root cause was eventually traced to insufficient fuel delivery, which directly impacts combustion efficiency and, consequently, boost and power output.

The engine’s fuel return flow must be measured under load to confirm whether the system is delivering adequate fuel. A restricted or undersized return path can create backpressure, limiting fuel flow into the injectors. This condition often goes undetected during static checks because the system appears functional at idle or low load. To verify return flow:

• Use a calibrated flow meter or collection container.
• Measure the volume of fuel returned over a set time (e.g., 1 minute) while the engine is under full load and at operating temperature.
• Compare the result to manufacturer specifications. A significant deviation indicates a restriction in the return line, fuel pump, or regulator.

If the return flow is below spec, inspect the fuel lines, filters, and fuel pump for blockages or wear. In some cases, replacing the fuel pump or installing a higher-capacity return line may be necessary. This step is essential before proceeding to mechanical or boost-related diagnostics.

Boost Leak Detection: A Critical Diagnostic Step

Introduce workshop air to intake system, utilise soapy water to identify boost leak.

Governor Assembly and Rack Synchronization: Hidden Performance Killers

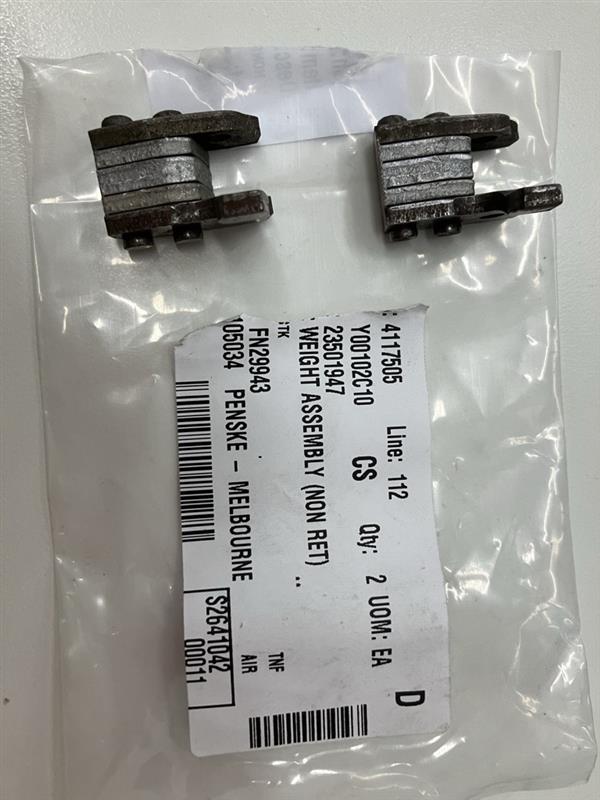

While fuel and boost systems are often the first suspects, mechanical components such as the governor and fuel rack assembly can also be responsible for low power output. In this instance, the engine’s governor weight assembly carrier bearing was found to have excessive movement within the housing. This wear allowed the governor to respond inaccurately to load changes, resulting in improper fuel delivery and reduced engine output.

The solution involved replacing the governor with one from greenstock (a known reliable source) that featured a properly fitted weight assembly. After installation, the governor gap was set precisely to 0.003 inches, as specified in service documentation. This adjustment ensures the governor responds correctly to engine speed and load, maintaining optimal fuel delivery.

Equally important is the synchronization of the fuel racks on both the left-hand (LH) and right-hand (RH) banks. During inspection, it was discovered that the RH rack was slightly out of sync, leading to uneven fuel distribution. This imbalance reduced the effective fuel delivery to the RH bank, directly impacting overall power output.

To correct this:

• Remove both rocker covers to access the fuel racks.
• Use a rack sync tool or feeler gauge to measure and adjust both racks to match at full fuel position.
• Recheck the throttle delay setting, which should be set to 0.385 inches to ensure proper timing between throttle and fuel rack movement.

These mechanical adjustments, though seemingly minor, can have a dramatic impact on engine performance. A misaligned rack or worn governor can mask deeper issues and lead to prolonged troubleshooting if not addressed.

Component Replacement and Verification: Ensuring Long-Term Reliability

In the course of resolving the issue, several components were replaced, including injectors and fuel filters. Notably, the engine was tested with both remanufactured MTU injectors and original Reliabilt injectors, with no change in performance. This confirmed that the injectors were not the source of the problem.

However, the final resolution came after replacing the governor and correcting the rack synchronization. This highlights a critical point: not all component replacements yield results, and it’s essential to verify the root cause before assuming a part is faulty.

For future reference, keep the following part numbers on hand in case of recurrence:

• Governor assembly (greenstock)
• Fuel rack sync tools and feeler gauges
• Throttle delay adjustment gauge

Having these items readily available can reduce downtime and prevent unnecessary part swaps.

Final Testing and Validation: Confirming Performance Recovery

After completing all adjustments, the engine was run on the dynamometer until it reached operating temperature. A full-load test was then conducted to verify performance. The results showed a clear improvement: boost pressure increased to 22 psi, and power output reached the expected level.

This outcome underscores the importance of testing under real operating conditions. Many issues are masked at idle or low load, but only become evident under full power. Always perform a full-load dyno test after repairs to validate that the engine is performing as expected.

Key Takeaways for Preventive Maintenance and Troubleshooting

• Fuel return flow must be tested under load—a common oversight that can lead to misdiagnosis.
• Boost leaks are often dynamic—use smoke testing or pressurization during operation to detect them.
• Governor wear and rack misalignment can significantly reduce power, even if all other systems appear functional.
• Always verify component specifications—especially gap settings and sync tolerances.
