Selection of Fluid Fittings

When selecting fluid fittings for flammable liquids, it is important to utilise Parallel Thread Fittings with Sealing Rings as a priority.



Marine Classification Societies and The Royal Australian Navy mandate the use of such fittings.



Tapered Thread Fittings are to be avoided due to the inability to specify a tightening torque, the reliance on a sealing agent or thread tape needed to seal the threads, and the reduced thread engagement as the fittings are disassembled.

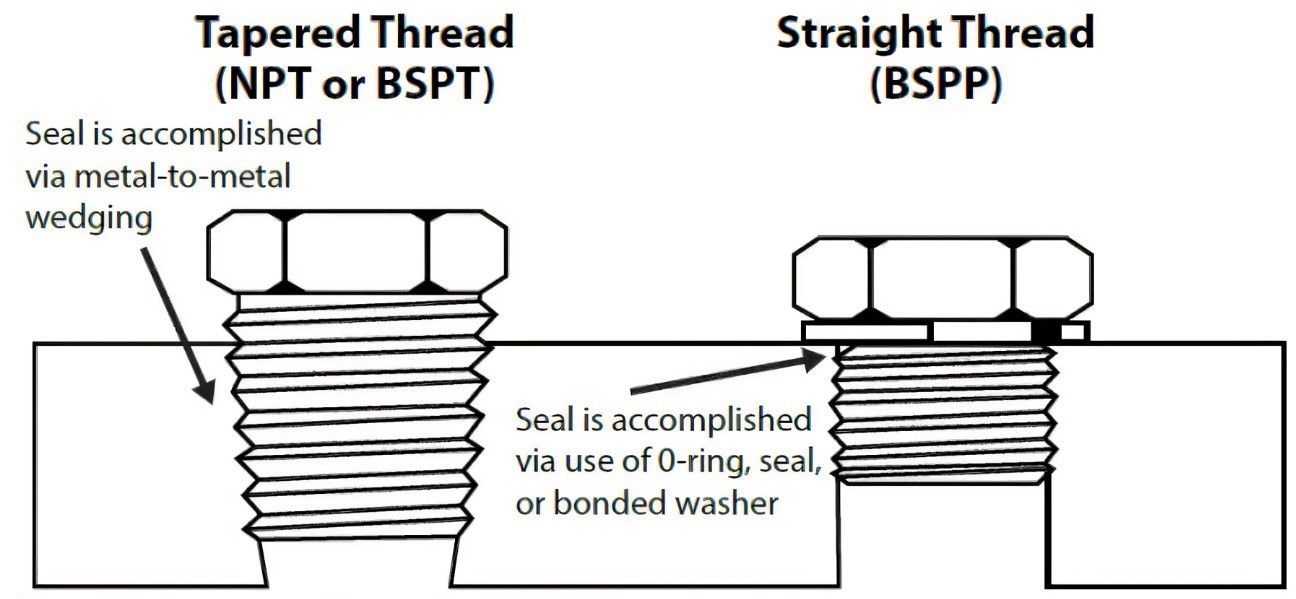

An example of each is shown in the attached image.

​
