LAMA Load Factor Load Indicate TBO matrix description

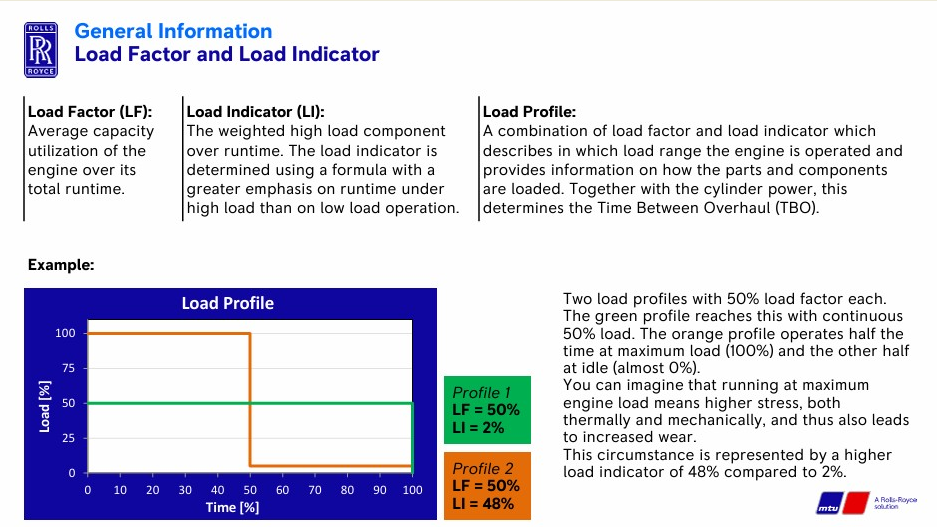

MTU / RR has established a tool "LAMA" enabling input of engine downloaded files to provide a relative Load Factor and Load Indicator identifiers from real data provided. This then enables input to the Maintenance and TBO matrix maintenance schedules to enable a more customisable schedules and plans for the customer based on their true operating parameters. Below and attached are some basic details to provide better info and descriptions of the process. Note the LAMA tool and updated details are available within the RR Business Portal "Life Cycle Costing (LCC)" tools section.

• Related Articles

• Series 60 Marine maintenance schedule

  Series 60 Marine operator manual with maintenance schedule

• Wet Stacking / Slobbering / Light Load operation and effects 14-S0230

  Attached is a good reference letter describing the negative effects possible with extended light load running of any diesel engine.

• Life Time Before Overhaul 18 yrs on Elastomers

  18yr TBO requirement in most MTU maintenance schedules specific to elastomers and gaskets.

• L1150 LeTourneau / Komatsu 16v2000C22 calibration config details

  Attached is example DDEC calibration set up suited to a LeTourneau L1150 loader using the 16v2000C22 engine for reference.

• Oil consumption as a % of fuel burn

  MTU often calculates oil consumption as a % of fuel burn. For example all the series 4000 engines generally are between 0.3% of fuel burn after 100hrs of operation to 1.0% of fuel burn. To calculate this you will need to start an oil consumption ...
