Re-starting 2 stroke engines after extended storage.
Penske recommendations for re-starting a Detroit Diesel 2 stroke engine that has been in extended storage would be as follows –
- Ensure oil level is at
correct level and cooling package is topped up with coolant.
- Remove the rocker covers
and ensure the fuel rack is free (no sized injectors) and the rack can be
put in the no fuel position ie able to shut down. Verify if the rack is spring
loaded or the two screw type, if spring loaded and an injector seizes then
the other injectors are still able to come out of fuel and shut the engine
down, if it’s the two screw type and an injector seizes then the engine
could “run away” as all injector will be unable to come out of fuel
resulting in possible engine damage.
- Ensure the air shut off
flaps are functional. If no shut off flaps are installed then you will
need to remove the air intake and have a suitable board or similar that
can be placed over the air intake to suffocate the engine if it begins to
run away (uncontrolled running)
- Place a barring over
tool on the engine.
- Ideally hooking up an
electric lube oil priming pump (if not already installed) to push oil
through the system before rotating the engine. Prime the engine until at
least 4 psi oil pressure is seen.
- With the electric oil
priming pump running bar the engine over to allow oil to feed other
bearings that have had oil supply gallery blocked. Good idea to at least turn the
engine over 360° to ensure all journals, bearings, etc have had fresh oil
supply.
- Prime the fuel system to
remove any air from the fuel system.
- Remove the baring over
tool.
- Wind the engine over
using the starter with the fuel rack held in the no fuel position, this
will allow oil to coat the liners and ensure everything moves freely
before adding load etc.
- Install the engine
rocker covers and start the engine.
- Run at little to no load
until the engine reaches operating temperature.
- Operate the engine as
per design.

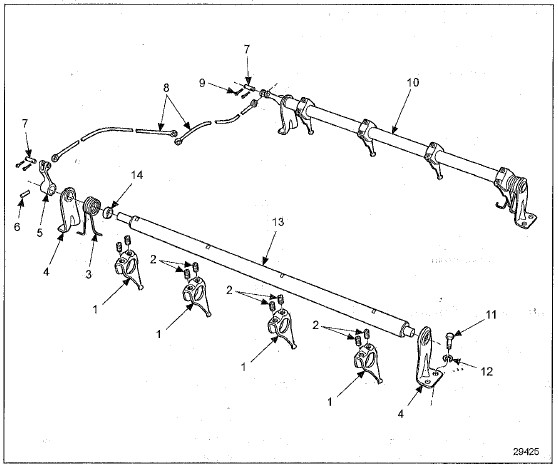

Two screw type fuel rack
Spring loaded fuel rack

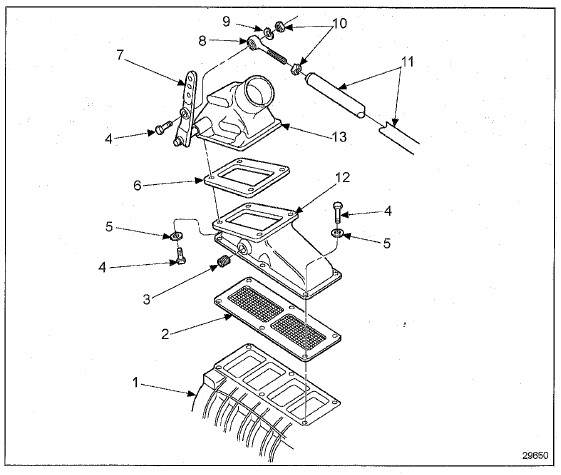

Emergency shut off flap
